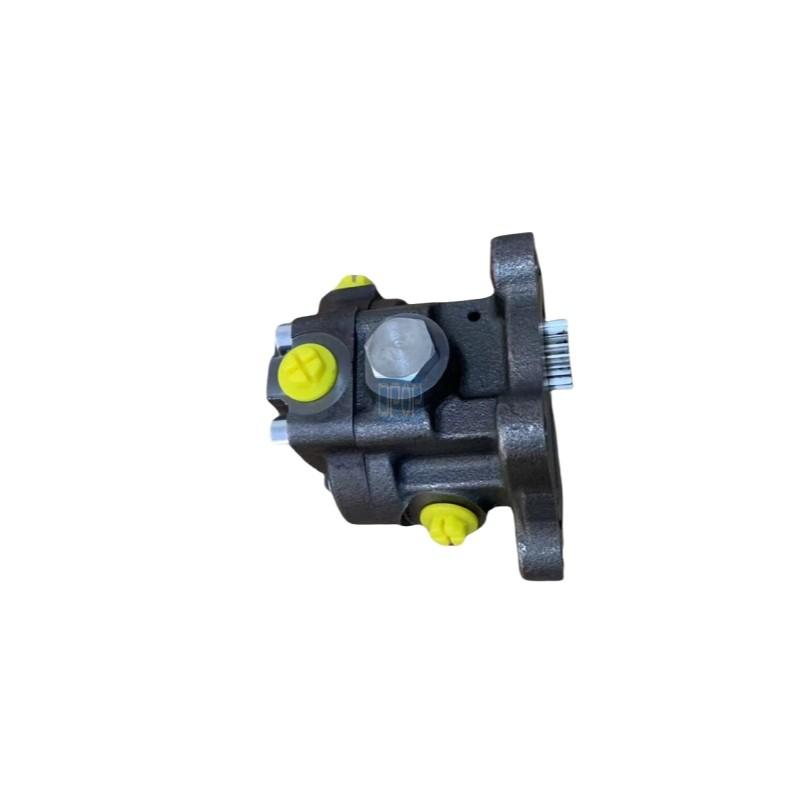

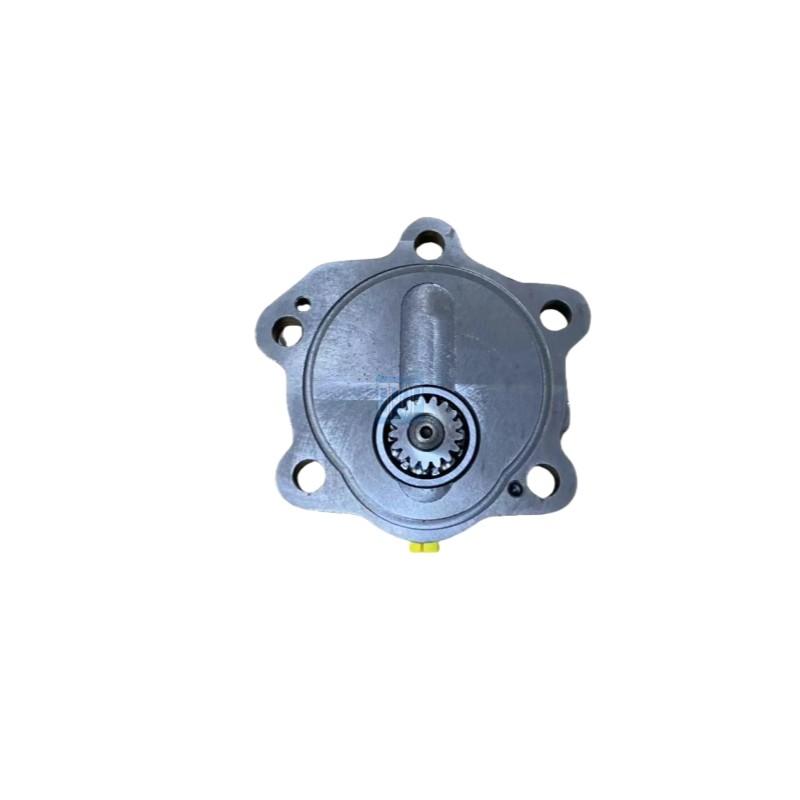

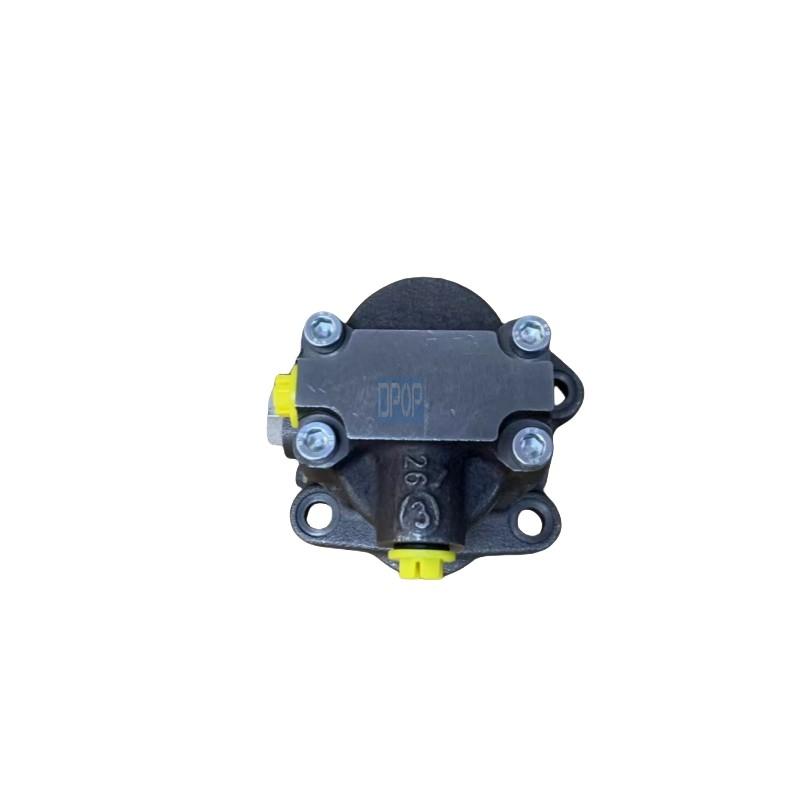

Caterpillar C4.4/C6.6/3054C Fuel Pump 2930249 4264806

DPOP NO:

GFP30249 LQ1060

International Number:

T400392 PERKINS
2641A307 PERKINS
2641A305 PERKINS
2641A302 PERKINS

CATERPILLAR 4264806
CATERPILLAR 2930249
CATERPILLAR 10R7671
CATERPILLAR 293-0249
CATERPILLAR 426-4806
CATERPILLAR 10R-7671
CATERPILLAR 47957315

4227404M91 MASSEY FERGUSON
4226483M91 MASSEY FERGUSON
10000-63876 FG WILSON
10000-16406 FG WILSON
293-0249 CATERPILLAR
10R-7671 CATERPILLAR
PERKINS 4.318
PERKINS 1104D-E44T NH
PERKINS 1104D-E44TA NJ
PERKINS 1106D-E66TA PJ
PERKINS 1106C-E66TA PK
CATERPILLAR C4.4 C4E
CATERPILLAR C6.6

Basic Info

Part No: 293-0249 (2930249), 426-4806 (4264806) Alternate Part No: T400392, 10R-7671, 47957315, 2641A307 Name: Fuel Transfer Pump Type: Gear type, spline driven, without priming hand pump Fit Engine: CAT C4.4, C6.6 / Perkins 1104D-E44T, 1106D

Compatible Machines

Crawler Excavator: 320D, 320D GC, 323D, 319D Wheeled Excavator: M313D, M315D, M316D, M318D, M322D Wheel Loader: 924H, 924HZ, 928H, 930H, 938H Track Loader: 953D, 963D Backhoe Loader: 420E, 430E, 450E Dozer: D5R, D6N, D6K Motor Grader: 120M, 12M Telehandler: TH337C, TH407C, TL943C Generator set, paver and other heavy-duty equipment

Function

It is a low-pressure fuel supply component for common rail fuel system. Driven by engine gear train, it draws diesel fuel from tank and delivers fuel to fuel filter, supplying stable low-pressure fuel to high-pressure common rail pump. It avoids cavitation and suction shortage of high-pressure pump, maintains consistent fuel flow during idling and heavy load. Air bleeding must be done via air vent screw on filter base.

Features

1. OEM dimension, same flange, port and spline as original, direct replacement without modification
2. Precision gear pair for stable flow and steady pressure output
3. High-strength cast aluminum housing, impact resistant; FKM seals for diesel resistance, anti-leakage & anti-aging
4. Reliable gear drive, fast response, matched for common rail system requirement
5. Designed for harsh working conditions: mine, construction site, wide temperature range
