DPOP NO:
HFP07350A
International Number:
0000907350 MERCEDES
0000900212
H11K01
1146200000
MERCEDES-BENZ MK/NG/SK
ACTROS ACTROS MP2 MP3

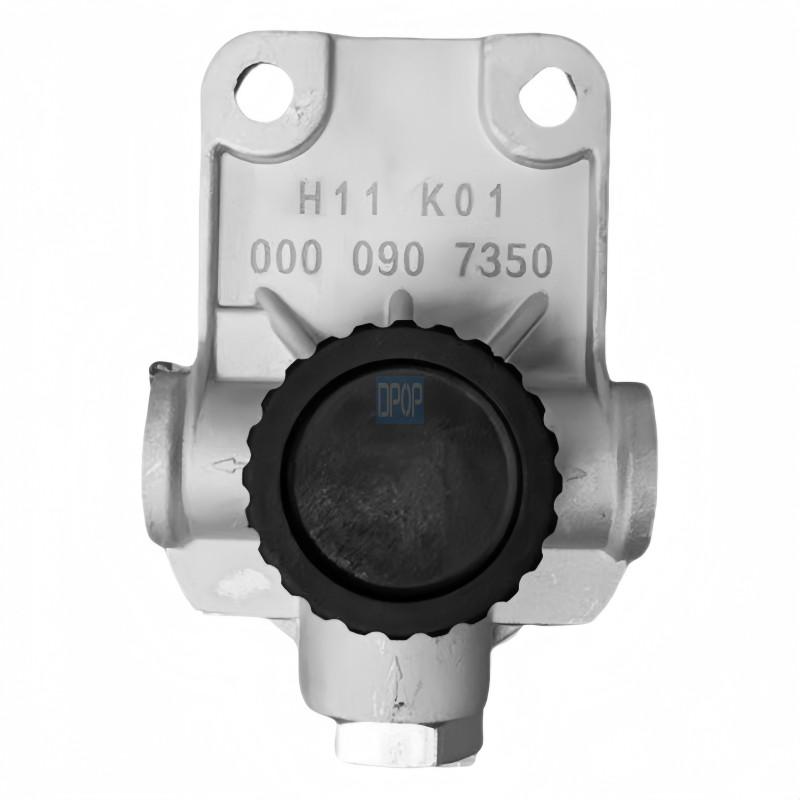

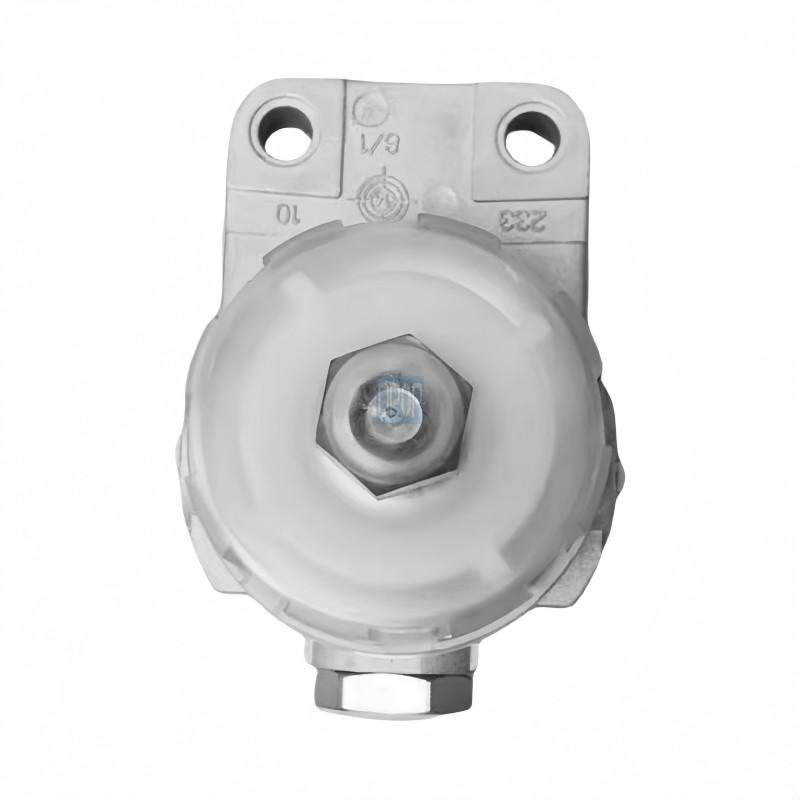

Product Name: Mercedes-Benz Truck Manual Fuel Priming Pump (with Transparent Filter Bowl, Hand Primer Pump Assembly)
Applicable Models: Mercedes-Benz Actros MP2 / MP3 heavy-duty trucks, compatible with OM501 and OM502 series diesel engines.
Product Functions
Manually press the top knob to pre-pump fuel into the fuel line. It is used to bleed air from the fuel circuit after engine maintenance or filter replacement for easier engine starting.
Equipped with an integrated transparent sediment filter bowl, it can preliminarily filter impurities in diesel fuel, allow visual inspection of water and sediments in fuel, and achieve preliminary fuel-water separation.
Mounted at the front end of the engine fuel inlet to supply stable fuel for the high-pressure fuel system.
Common Faults
Pressure leakage of the hand primer knob, failing to build fuel pressure;
Aging of the filter bowl sealing ring resulting in diesel leakage;
Clogging of the internal filter screen in the filter bowl, leading to insufficient fuel supply and reduced power output.
